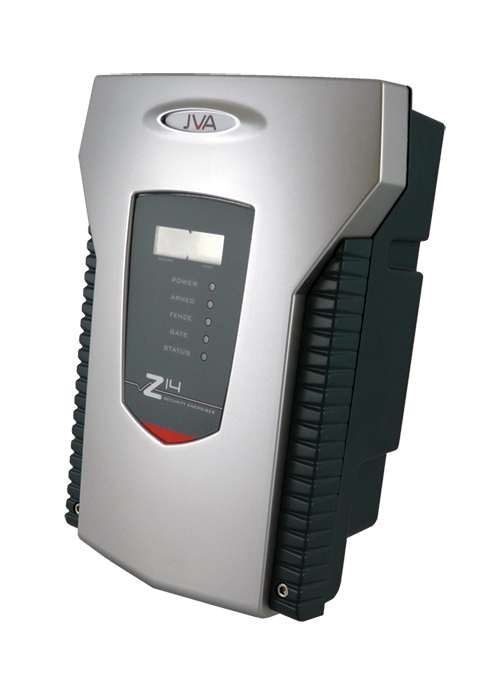

Z14 Security Electric Fence Energiser

The JVA Z14 is a single zone security electric fence energiser purpose built for control and monitoring of perimeter security electric fences. It can meet all of the requirements from basic residential to fully integrated high profile installations. The Z14 can be programmed and controlled using the optional LCD keypad. It can also be networked with other Z Range energisers to form a pulse synchronized group for larger sites which require multiple zones.

The Z14 allows you to control and supervise an electric fence from:
• On Site using the optional LCD keypad
• A control room using Perimeter Patrol[1] PC Software
• Anywhere in the world using the Internet[2]

[1] PAE223 or PAE100 serial data adaptor required
[2] PAE212 TCP/IP adaptor required
SKU: PTE1040 Category:

This product is currently out of stock and unavailable.

Product description


  • Safe but effective deterrent, high voltage output
  • High and low power modes
  • Built in charger and space for a 12V 7.2aH backup battery
  • Supports Bi-Polar or conventional fence wiring
  • Alarms on fence short or open circuit
  • Control and programming via LCD keypad
  • Large number of programmable options
  • Monitor via PC (using Perimeter Patrol software)
  • 2 control inputs
  • 2 switched 12V DC outputs (Siren and Strobe)

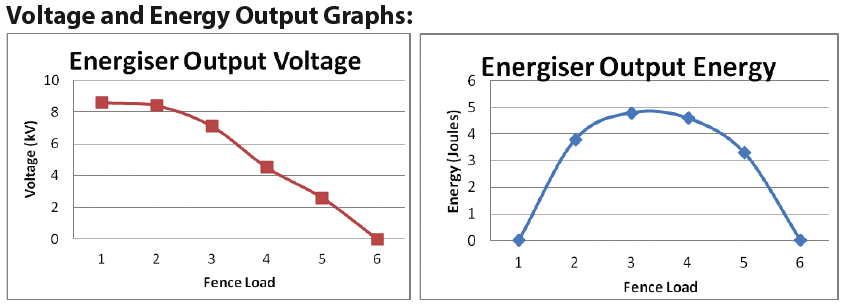

Fence Voltage: 9.9 kV, Energy: 4 Joules

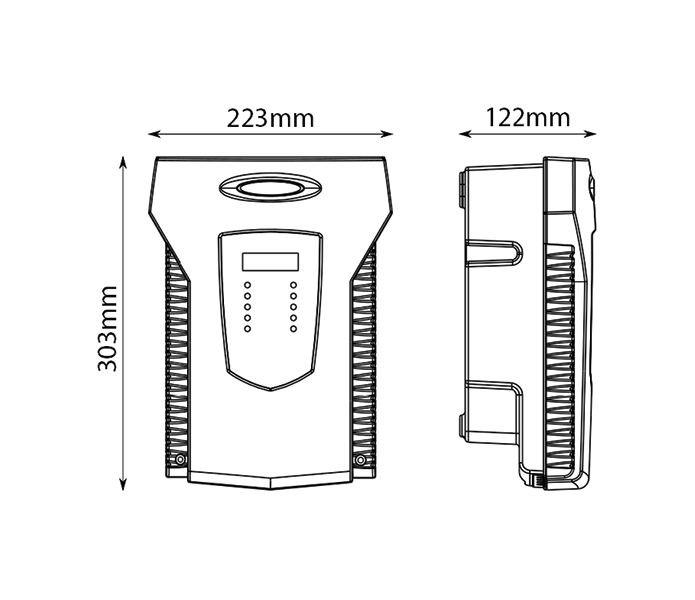

Height x Weight x Depth: 303mm x 223mm x 122mm


1.9 kg (No Battery)
4.0 kg (Battery)

Additional information

Dimensions 12.2 × 22.3 × 30.3 cm
